Locker F-40.182

Locker  F-40.182

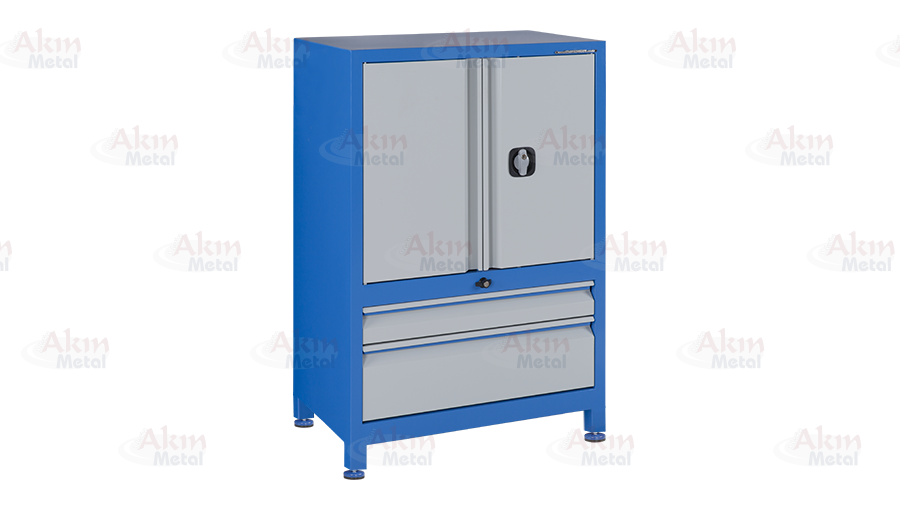

RAL 5015 / 7035

RAL 5015 / 7035

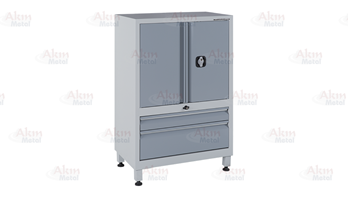

RAL 7035 / 7001

RAL 7035 / 7001

Technical Specifications
Width 800 mm Shelf System Adaptable
Depth 500 mm Shelf Bearing Capacity 80 kg.
Height 1200 mm Total shelf 1 pieces Equipment Shelf
Cover System 120 ° Opened system Lock System Espagnolette locking system
Drawer number and size 1 x 100 + 1 x 205  mm Drawing system Ratchet / Telescopic
Body color RAL 5015 / Lumpy Dye Leg System Adaptable
Drawing and cover color RAL 7035 / Lumpy Dye Other Characteristics -
Drawing Transportation System 40 kg.

F-40.182 MODEL MALZEME DOLABI ÖZELLİKLERİ



120  derece acilabilir kapak

Cover System

120º  has a double door system can be opened.

Central Lock System

Lock System

Central Lock System

Yük taşıma kapasitesi

Shelf System

1 height in the cupboard are Adaptable Equipment Shelf. Carrying capacity of one rack is 80 kg.

Telescopic Rail System

Telescopic Rail System

%100 radial telescopic rail system is used in the drawers.



Mandallı kilit mekanizması

Rachet Lock System

It avoids any opening of the drawer involuntarily, thanks to the rachet lock system which is available on each drawings.

Roller Rail System

Drawing Transportation System

The bearing capacity of drawer in the team cars is 40 kilograms.

Adaptable Floor

Adjustable legs

Powder coated feet that can be adjusted independently of the posture stability of the cupboard to be affected by irregularities in the floor.

Elektrostatik Smooth Dye

Smooth Dye

The electrostatic powder paint technology used for our products. Electrostatic create smooth and brilliant image on the smooth dye products, which revives its location.





elektrostatik_pütürlü_boya

Lumpy Dye

The electrostatic powder paint technology used for our products. Electrostatic lumpy dye could conceal the deformation such as scratches or smashes. The color is more opaque and duller

Renk Kartelası

A wide spectrum of colors

Standard and corporate wide spectrum of colors.













Color Options



RAL
3000
RAL
2004
RAL
1003
RAL
6018
RAL
5012
RAL
5015



RAL
9016
RAL
7035
RAL
7001
RAL
7015
RAL
9005
RAL
5010
