Shutters Workbench A-10.214

Panjurlu Çalışma Tezgahı - A-10.214

RAL 7035 / 5010

RAL 7035 / 5010

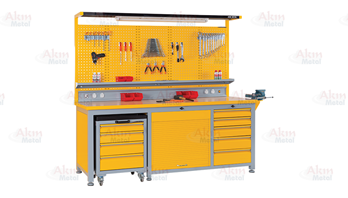

RAL 7001 / 1003

RAL 7001 / 1003

Technical Specifications
Width 2490 mm Shelf System Sliding
Depth 720 mm Shelf Bearing Capacity 95 kg.
Workbench height 920 mm Lock System Central Locking
Board Height 1080 mm Workbench Floor Adaptable
Over-the counter 25 mm water contrast Other Characteristics 4 Socket Count
Drawer number and size 4 x 100 + 1 x 125 + 2 x 150 + 2 x 175 mm   Illumination
Body color RAL 7035 / Lumpy Dye   Toolkit Shelf
Drawing and Wardrobe color RAL 5010 / Lumpy Dye   4 Drawer Tool Carts
Drawing system Rachet / Roller   Clamp Connection Apparatus
Drawing Transportation System 95 kg.   Motorized Louvered Wardrobe
      33 Piece Bracket

A-10.214 THE CHARACTERISTICS OF THE MODEL PROFILE WORK-BENCH



Çalışma Tezgahı Illumination Bölümü

Illumination

The project designing as per the work-bench size, and together with the LED armature made from chrome plate, provides more enlightenment for such work-bench.

Çalışma Tezgahı Set Hanging Panel

Set Hanging Panel

It provides more productive working field and avoids loss of time by means of arranging your daily hand tools onto the set hanging panel.

Toolkit Shelf

Toolkit Shelf

It provides the engagement of hardware equipment such as toolkit boxes, spray boxes, and ease of handling.

Çalışma Tezgahı Sockets

Sockets

While using your electrical equipment it provides ease of handling, which made from chrome metal sheet and it has residual current circuit braker, 220V sockets , als0 380V sockets are available (optional).



Over-the counter 25 mm water contrast

Countertop Work Area

Within the concept of counter top work area we provide different solutions to different sectors. For standard model of countertop 25mm impact resistant water barrier and for other options you can check the surface options for countertops.

Mengene Baglanti aparati

Clamp Connecting Apparatus

It is developed to maximize the over-the counter usage area, clamp connecting apparatus could be installed to the right and left side of our over-the counter models. Within our standard models, only one them is available, which placed on the left side.

Central Lock System

Central Lock System

The central lock system enables to lock simultaneously all the drawer within the same drawer block.

Mandallı güvenlik sistemi

Rachet Lock System

It avoids any opening of the drawer involuntarily, thanks to the rachet lock system which is available on each drawings.





Roller Rail System

Roller Rail System

%95 radial roller rail system is used on our Work-bench models.

çalışma tezgahı Drawing Transportation System

Drawing Transportation System

The bearing capacity of each drawer contains such roller rail system is 95 kilograms.

Drawer Split System

Drawer Split System

Thanks to the metal split system, your drawer are more tidy. The metal split system which divisible into 441 different forms, is available in the first of each drawer block.

Optional Split

Optional Split

It is optional to use such split system in the drawer, except for the first drawer.





Panjurlu Cover System

Cover System

It is available on profile work-bench, motorized cover system, electric motorized automatic louver and manual louver options.

Dolap kilitlenebilme özelligi

Lock System

All wardrobes existed on work-bench could be locked separately.

Slide Rail System

Slide Rail System

Profile Work-benches have two roller shelves, which contain roller rail system.

Shelf Bearing Capacity

Shelf Bearing Capacity

Within the slide rail system which contains roller rail system the bearing capacity of a shelf is 60 kilograms.





Adaptable  Krom Kaplı Ayaklar

Adaptable Floor

The work-benches have separate floors, which adaptable separately from each other so as to avoid any balance defects arising from the ground failure.

Elektrostatik Smooth Dye

Smooth Dye

The electrostatic powder paint technology used for our products. Electrostatic create smooth and brilliant image on the smooth dye products which revives its location.

elektrostatik_pütürlü_boya

Lumpy Dye

The electrostatic powder paint technology used for our products. Electrostatic lumpy dye could conceal the deformation such as scratches or smashes. The color is more opaque and duller

Renk Kartelası

A wide spectrum of colors

Standard and corporate wide spectrum of colors.



4 ÇEKMECELİ TAKIM ARABASI ÖZELLİKLERİ



4 Partitioned ABS

4 Partitioned ABS

4 partitioned ABS platform, team car upper section

Central Lock System

Central Lock System

The central lock system enables to lock simultaneously all the drawer within the same drawer block.

Telescopic Rail System

Telescopic Rail System

%100 radial telescopic rail system is used in the drawers.

Mandallı Lock System

Rachet Lock System

It avoids any opening of the drawer involuntarily thanks to the rachet lock system which is available on each drawings.



Drawer Split System

Drawer Split System

Thanks to the metal split system, your drawer are more tidy. The metal partition system is available for the first drawer of each drawer block.

Diğer çekmeceler için Optional Split

Optional Split

It is optional to use such split system in the drawer, except for the first drawer.

Drawing Transportation System

Drawing Transportation System

The bearing capacity of drawer in the team cars is 35 kilograms.

Dönerli Frenli Teker

one piece of turnable wheels which has brake.

One piece of filled wheel, which has brakes, are available in team car.





Dönerli Teker

1 piece of turnable wheel

One piece of filled wheel is available in team car.

2 pieces of stable wheel

2 pieces of stable wheel

Two pieces of stable filled wheel are available in team cars.













OVER THE COUNTER WORKING FIELD OPTIONS





25 mm Su Kontrasi tegzah üstü

25 mm water contrast

4 mm paslanmaz

4 mm stainless over the 25 mm wallboard

Havuzlu Paslanmaz

2 mm stainless over the 25 mm chipboard (pooled)





Laminat Kaplama

Laminate covering over the 25 mm wallboard

5 mm rubber over the 22 mm water conrast

5 mm rubber over the 22 mm water conrast

25 Water Contrast  üzeri kauçuk

2 mm PVC over the 25 mm water contrast



Bracket Models



Tornavidalık

Screwdriver Bracket

Anahtar Asma Aparatı

Key Bracket

Yıldız Anahtar Asma Aparatı

Offset Wrench Bracket





İkili Asma Aparatı

Versatile Clasp

Muhtelif Asma Aparatı

Versatile Clasp

Muhtelif Asma Aparatı

Versatile Clasp



Color Options





RAL
3000
RAL
2004
RAL
1003
RAL
6018
RAL
5012
RAL
5015



RAL
9016
RAL
7035
RAL
7001
RAL
7015
RAL
9005
RAL
5010
